Flame Retardant Cable to IEC60332-3C
300/500V 2C/ 4C/ 8C 0.5 mm2 Flexible Cu/LSZH/TCWB/LSZH
Application
The cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.

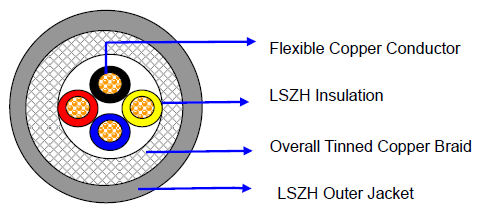

Construction
Conductor:Stranded flexible copper wire conductor
Insulation:LSZH
Core Identification:
Color coding as per DIN47100
Shield:Overall tinned copper braid
Sheathing:LSZH
Sheath Color: Light grey
Packing: The cables are delivered on non-returnable wooden drums.
Technical data
| No. of Core |
Conductor Size and Stranding |
Nom. Thickness of Insulation |
Tinned Copper Wire Braided Cable | ||
|---|---|---|---|---|---|
| Nominal Thickness of Sheath |
Nominal Overall Diameter |
Approx. Weight |
|||
| 2 | 0.5 mm2 (16/0.2mm) |
0.45 | 1.0 | 6.3 | 62 |
| 4 | 0.5 mm2 (16/0.2mm) |
0.45 | 1.0 | 7.2 | 88 |
| 8 | 0.5 mm2 (16/0.2mm) |
0.45 | 1.0 | 8.9 | 135 |
Physical characteristics
Temperature rating:
During operation: -20 to + 90℃
During Installation: 0 to + 90℃
Minimum bending radius:
During installation: 3 x Overall Diameter
Flexibility:Flexible
Physical characteristics
Temperature rating:
During operation: -20 to + 90℃
During Installation: 0 to + 90℃
Minimum bending radius:
During installation: 3 x Overall Diameter
Flexibility: Flexible
Electrical characteristics
Rated voltage: 300/500V
Max. conductor resistance at 20ºC: 39 ohm/km
Min insulation resistance: ≥500 M Ohm×Km
Test voltage: 2000V
